• • 30 FT. PLUS HEIGHT CAPABILITY
  • • 4,000 LB LIFTING CAPACITY
  • • 45 SECOND COMPLETE CYCLE TIME PER PIPE JOINT
  • • 30 GALLON HYDRAULIC AND DIESEL RESERVOIRS
  • • KUBOTA 48 HP DIESEL ENGINE WITH ENCLOSURE
  • • REMOTE CONTROL UP TO 1,000 FT DISTANCE
  • • PRESSURE COMPENSATED LOAD SENSE PUMP

LET THE WORKHORSE HYDRAULIC CATWALK TRAILER HANDLE YOUR NEXT PROJECT
Specializing in mobile pipe lifting and mobile pipe handling.

ABOUT

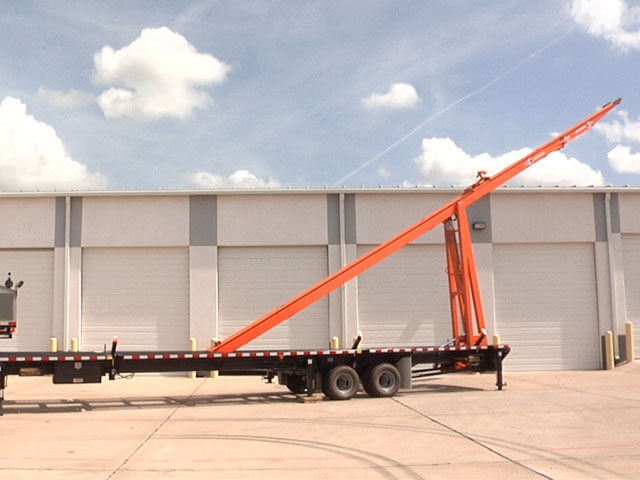

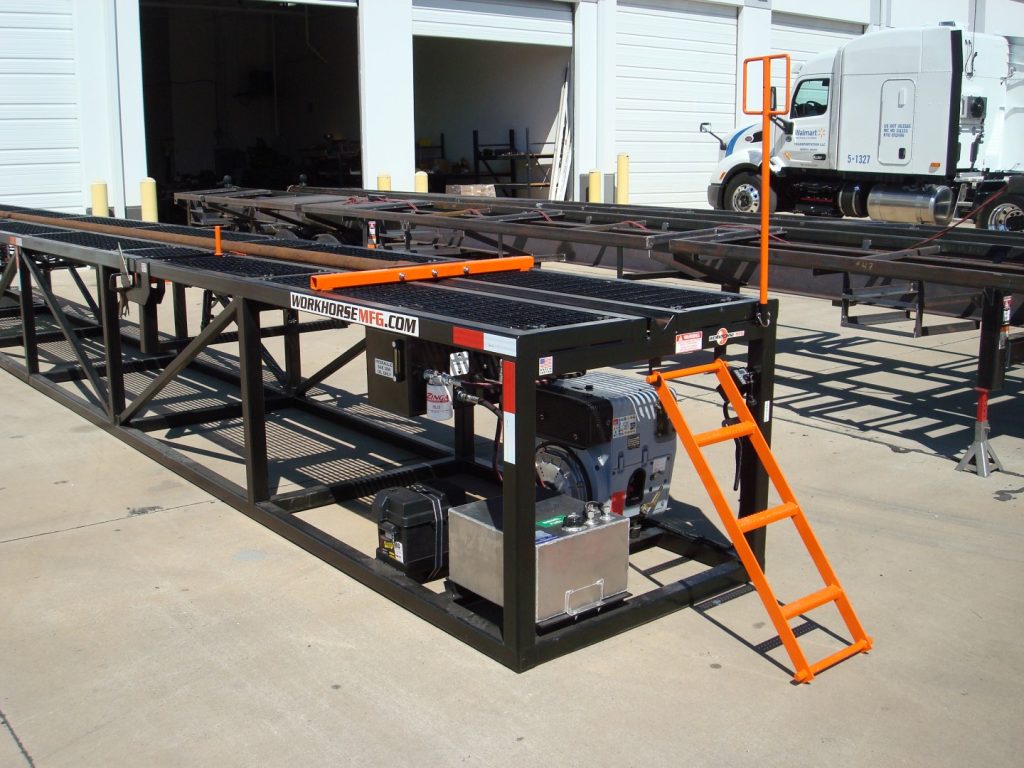

The Workhorse Laydown Trailer and Hydraulic Catwalks are custom-built with improvements and functions to make handling pipe easier and safer. The Workhorse Laydown Trailer is a custom built Gooseneck Trailer with a 40 foot bed built for the Workover Rig Industry. It has a 40 foot trough with a 10 foot hydraulic folding Extension and can lift 4,000 lbs to over 30 feet. The Workhorse Catwalk 360 is a small pipe handling platform built for the Service Rig Industry. At only 36 ft long, 4 ft wide and 42 inches tall, it can lift 2000 lbs to 12 feet high.

Two models available:
• Workhorse Laydown Trailer
• Workhorse Catwalk 360
